As of November 23, 2023
Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
| Item | Specifications |
|---|---|
| Product Number | FT-KV26 |
| Part Number | FT-KV26 |

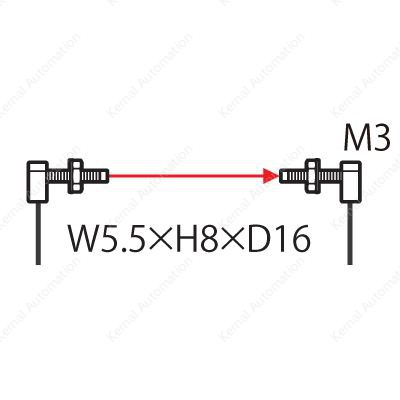

| Sensing mode | Thru-beam type |
| Fiber type | Narrow beam |
| Fiber head dia. | 1.5x2 mm |
| Fiber head length | 20 mm |
| With sleeve | No |
| Beam direction | Side-view |
| Beam axis dia./ Spot diameter | dia. 1 mm |
| Beam axis accuracy : Beam axis Inclination | X plus or minus 1 degrees Z plus or minus 0.5 degrees |
| Fiber cable length | 2 m |
| Allowable bending radius | R2 mm |
| Free-cut | Available |
| Semi-custom | Fiber length change |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP30 |
| Environmental resistance : Ambient temperature MAX | 80 degrees (Note) For production before September 2014: -40 to+60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees (Note) For production before September 2014: -40 to+60 degrees |
| Sensing range（STD） | 710 mm 27.953 in (FX-500 series) |
| Sensing range（HYPR） | 2,500 mm 98.425 in (FX-500 series) |
| Sensing range（U-LG） | 1,600 mm 62.992 in (FX-500 series) |
| Sensing range（LONG） | 1,200 mm 47.244 in (FX-500 series) |
| Sensing range（FAST） | 440 mm 17.323 in (FX-500 series) |
| Sensing range（H-SP） | 160 mm 6.299 in (FX-500 series) |
